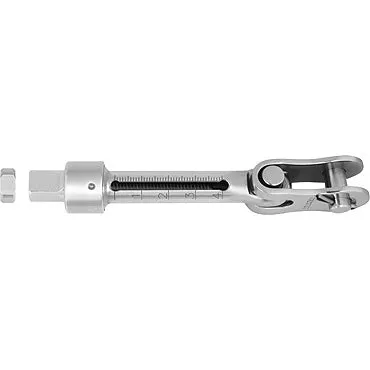

Product Details
＋
- Laser etched calibrations allow accurate, repeatable setting of rig tension
- Sleek modern profile
- Easier to adjust than conventional turnbuckles due to fine thread and single end adjustment
- Threads are UNF (Unified National Fine), short pitch threads for fine adjustment and reduced adjustment effort
- Easily adjusted - by turning the unique adjustment nut
- Lock nut included to secure desired length
- Use of dissimilar but compatible metals avoids the risk of thread seizure
- Toggle end provides full lateral articulation and connection compatability
- Threaded eye, toggle and swage terminal end options available
- Handle kit and swage grip available for 5/16" threaded models
| Thread | 5/16" UNF |
|---|---|
| Adjust. Length | mm |
| A | 9.4 mm |
| B | 11.2 mm |
| C | 138 mm |
| D | 20.7 mm |
| E | 7.9 mm |
| B. L. | 2360 kg |
| Weight | 144 g |
